Caching in AWS Lambda



Me presenting Caching in AWS Lambda

In every software application, there are usually two main reasons to cache data: a) to improve performance and b) to reduce costs. Caching in AWS Lambda is not different. Instead, the reasons for caching might be even more important in this context. This blog post explains why it could be necessary for you and shows how to implement different caching options. It’s based on a talk I gave at the AWS User Group Stuttgart meetup in December 2018. You can find the slides here and the code is provided in this GitHub repo.

Reasons for Caching

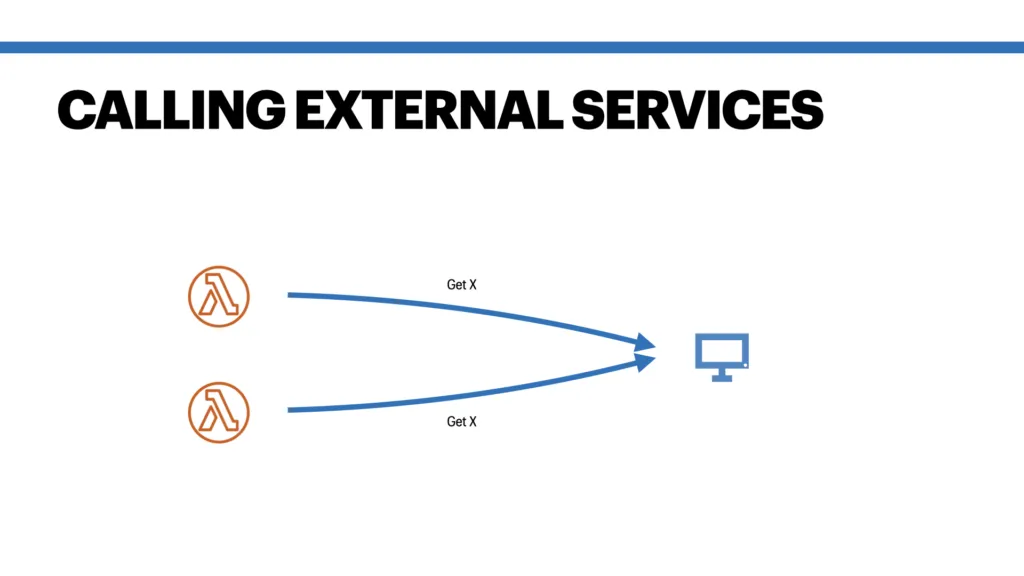

Let’s talk about the reasons first, why you need caching in AWS Lambda. Often a Lambda function will not only do some internal calculations, but also call other systems or services. This could be a database like DynamoDB or any kind of API service. Such calls might be costly, e.g. in terms of time to wait for a response or actual money. Since you pay for the execution time of a Lambda function, waiting for a response will also cost you money in the end. You can easily save some time if you don’t have to wait for expensive API calls in each execution and instead cache certain responses. Furthermore, the cost reason is even more dramatic if you think about the scalability of a function. Just imagine the following scenario:

Function Scaling Example

Your Lambda function is always scaled automatically, i.e. at some point you have multiple instances running. That’s good so far, because that’s what you expect from AWS Lambda. However, if your function is making a call to DynamoDB, you can observe that this call is not only made once, but it’s made X times. Here, X is equal to the sum of all invocations from all the instances of your Lambda function. In many use cases it’s not necessary to make expensive calls again and again. Hence you can save a lot of calls by simply caching data for a certain amount of time. Before we look at the different caching options, we quickly need to investigate how the code of a Lambda function is executed. With this knowledge, we can then introduce caching into our functions.

Execution Process of a Lambda Function

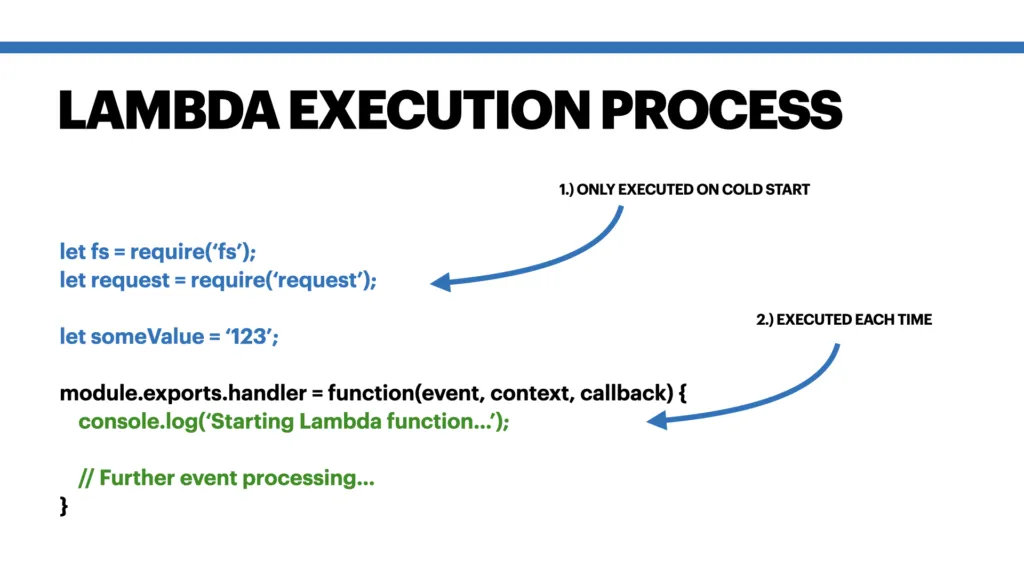

Each Lambda function is experiencing the same execution process: if no instance of your Lambda function is available or all existing instances are busy with invocations, a new instance is started (a “cold start“). This cold start involves an initial start of the Lambda runtime (e.g. a Node runtime or a JVM in Java). This includes some initialization code which e.g. is declared before your Lambda function handler. In NodeJS this could be requiring a certain dependency or read an environment variable. In Java it might be importing classes and doing some field initializations in your constructor. After this initialization phase the actual function handler is called. Here is a NodeJS example from my slides explaining this:

Lambda Function Execution Process

One advantage is that the variables outside of the handler function will survive the Lambda invocations. That means you can set a value in one invocation and it will be accessible within all following invocations. This works for one Lambda instance until that specific Lambda instance is shutdown. The caching “trick” is now that you make use of these variables outside of your handler function scope. This is described in more detail below.

Caching Options

Now, in order to cache your data, you have three options available:

  • simple caching by using simple variables declared outside of a Lambda handler function,
  • custom caching by using a caching library on separate servers or
  • managed caching by using a managed caching service.

Simple Caching

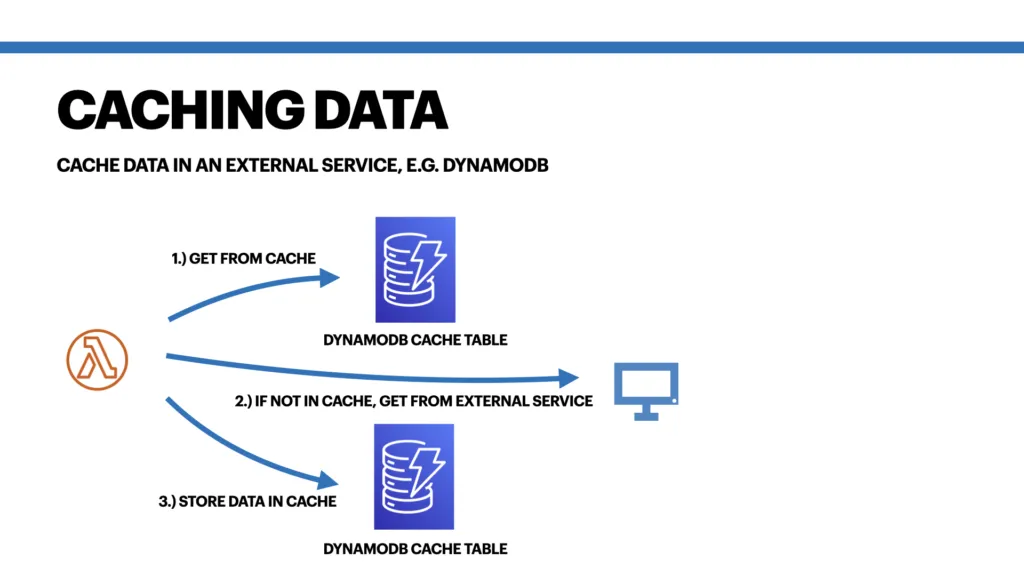

With a simple caching approach, you declare a variable outside of a Lambda handler function which stores your cached data. In NodeJS, this could be a simple key value object or in Java a simple Map object. For example, you can store “username_x” as key and “John Smith” as value. The general process will look like this: In the first call of your Lambda function, you’ll check if you have a key “username_x” stored in your local cache variable. If yes, you’ll use it. If not, you’ll make a call to your service and store the response in your local cache. It’s pretty easy, hence simple caching. Here is an example written in NodeJS:

However, there are two things you need to consider: First, make sure that you correctly scope your cached data. That means, take care that your Lambda function might also be called in different contexts. For example, if your function can be invoked with different parameters, e.g. with different user objects, make sure you don’t accidentally leak data to a different context. In such a case you can scope a key to prevent that, for example by using [userkey]_[other-identifier]_username_x. But you also have other ways to scope a key. Second, please consider that this cache is only accessible for one particular Lambda function instance. If your Lambda function is experiencing a lot of traffic and multiple instances have been started, then each Lambda function has its own local cache. These local caches are not synchronized! If you need to synchronize cached data between the instances, you should consider using one of the following caching options.

Custom Caching

In a custom caching approach, you make use of an existing caching library (e.g. Hazelcast, Redis or Memcached). You can use such a library and host it on your machines, e.g. on EC2 instances. This can be useful if you already have EC2 instances in your stack and want to add some more to provide you with a cache cluster. After setting up your cache, you simply add some code to your Lambda functions and connect to your own cache. With this approach, you keep the same access workflow as before: check if the cache contains your key => if not, make your expensive request once and then add the key value pair to the cache. This usually works fine as long as you let your Lambda functions only connect as a client and not as a full cluster node. A full cluster node like in Hazelcast would first synchronize a big chunk of data, because it’s part of the cluster. For a Lambda function, this won’t be acceptable.

Moving to a VPC

Although the custom caching might sound like a good solution to you, you need to be aware of a catch here: by default, EC2 instances are placed into a default (public) VPC in your AWS account. This also means, they will be open to the public. You probably want to avoid that. Hence you have to create a custom VPC where you can put your EC2 cache instances into. Within the VPC you can better specific your security rules, so your EC2 instances are not accessible by default.

However a second problem arises with this move. By default, a Lambda function is also placed into the default (public) VPC. The problem is you cannot access any resource inside a custom VPC from within your Lambda functions. Hence, you also have to move your Lambda functions into the same VPC as your EC2 instance where your cache is running on. Unfortunately, this will now increase the startup time of your Lambda functions. The reason is that AWS has to dynamically create an Elastic Network Interface (ENI) and attach it to your Lambda function instance. With an ENI your Lambda function can access the resources.

The CloudFormation template in my repository shows you how to setup such an infrastructure. I’m using a VPC with a public subnet, a Lambda subnet and a cache subnet. The Lambda functions have access to the cache instances in the cache subnet. They can also communicate to the internet by leveraging a NAT Gateway which sits in the public subnet.

Managed Caching

In a managed caching approach, the setup compared to the custom caching approach is pretty similar. The big difference is that you will use a managed caching service instead of provisioning your own caching instances. For example, you can use AWS ElastiCache which is based on Redis or Memcached. Both are widely supported caching libraries with SDKs for a lot of languages. As said, the setup is similar: you’ll have to place the ElastiCache cluster into a VPC and move your Lambda functions into the VPC as well. In contrast to the previous approach there are certain advantages using a managed service: a quick setup is possible, no maintenance work is necessary on your side and there is a good compatibility of Redis and Memcached. Especially the maintenance aspect might be worth to consider! The disadvantages are the same like for the custom caching: your Lambda functions take longer to start, because the ENI needs to be created dynamically.

Conclusion

After discussing all the three options for caching in AWS Lambda, it’s time to give a quick conclusion. In my opinion you should prefer the simple caching solution wherever possible. One use case might be that you retrieve data from an API which does not change quite often, e.g. some settings. This is easy to cache, but saves you a lot of time. If you really need some advanced caching mechanism, then you should use a custom or managed caching solution. For example, if you have some app configuration where it’s important to share configuration updates between your Lambda function instances, then move the Lambda functions into your VPC. The startup time of your function will take longer, but AWS will also bring some updates in 2019 to improve that, see this part of the video A Serverless Journey: AWS Lambda under the hood.
